Vendor: AllBallsRacing

All Balls Universal Joint - 209390

$59.99 CAD
$0.00 CAD $59.99 CAD
Sold out
Low stock: 2 left
Sku: 209390

Description

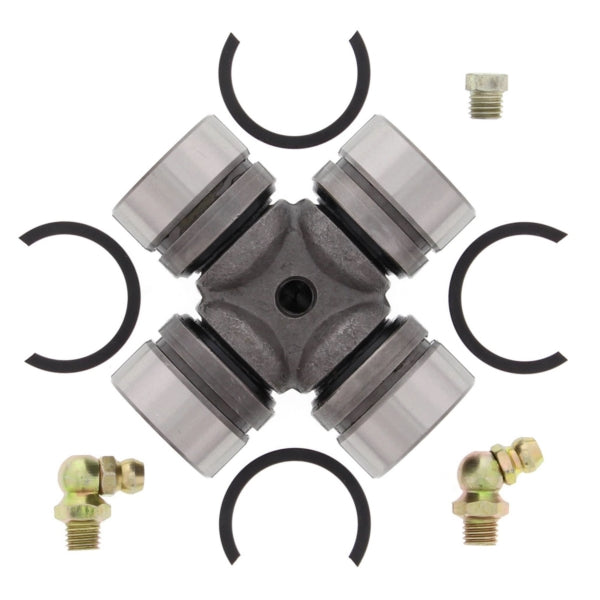

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

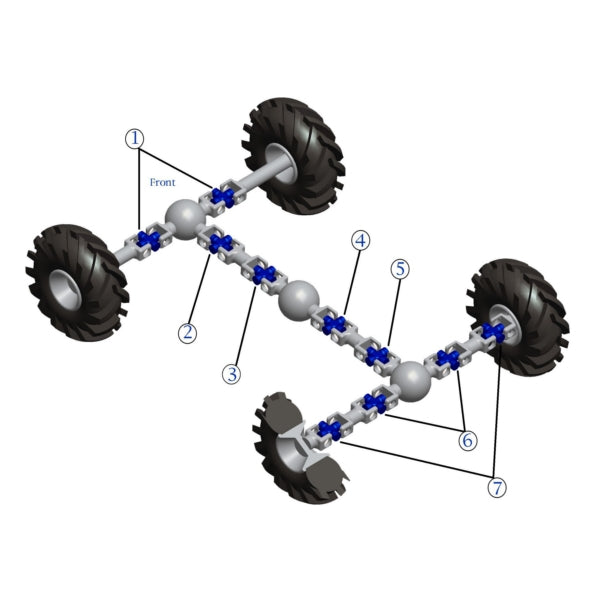

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.
    Zerk Yes
    Snap ring included Yes
    Position Varies by model
    Model number 19-1018

    Compatibility

    Make Model Year(s) Note
    ARCTIC CAT (TEXTRON) 1000 LTD EFI PS 4x4 2011
    ARCTIC CAT (TEXTRON) 1000 XT EPS 2013–2017
    ARCTIC CAT (TEXTRON) 1000i GT EPS 2012
    ARCTIC CAT (TEXTRON) 250 4x4 2001–2005 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 300 4x4 1998–2005 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 300 4x4 MRP 2004 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 2001
    ARCTIC CAT (TEXTRON) 400 4x4 1998–2000 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 ACT 2002
    ARCTIC CAT (TEXTRON) 400 4x4 Manual 2002 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 1998–1999 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 2000–2001
    ARCTIC CAT (TEXTRON) 500 4x4 ACT 2002
    ARCTIC CAT (TEXTRON) 500 4x4 Automatic 2000–2001
    ARCTIC CAT (TEXTRON) 500 4x4 Automatic ACT 2002
    ARCTIC CAT (TEXTRON) 500 4x4 Automatic FIS 2002 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 Manual FIS 2002 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 TBX Automatic 2003 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 TBX Automatic 2002 Location #3,5 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic 2004–2005 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic FIS 2006 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic LE 2004–2005 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic MRP 2004 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic Tony Stewart 2006 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) Alterra TRV 1000 XT EPS 2017
    ARCTIC CAT (TEXTRON) Bearcat 454 4x4 1996–1998 Location #3 on the schema
    ARCTIC CAT (TEXTRON) MudPro 1000 EFI 4x4 2010–2011
    ARCTIC CAT (TEXTRON) MudPro 1000 LTD EPS 2013–2015, 2017
    ARCTIC CAT (TEXTRON) MudPro 1000i LTD EPS 2012
    ARCTIC CAT (TEXTRON) Prowler 1000 H2 XTZ 2009–2010
    ARCTIC CAT (TEXTRON) Prowler 1000 XT EPS 2015–2017
    ARCTIC CAT (TEXTRON) Prowler 1000 XTZ EPS 2011–2014
    ARCTIC CAT (TEXTRON) Prowler 1000 XTZ H2 EFI 2011
    ARCTIC CAT (TEXTRON) Prowler 550 H1 Flatbed 2009 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) Prowler 650 H1 2007–2008 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) Prowler 650 H1 XT 2006–2009 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) TBX 500 4x4 Automatic 2004–2006 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Thundercat 4x4 EFI Automatic 2010
    ARCTIC CAT (TEXTRON) Thundercat 4x4 SE H2 EFI Automatic 2009
    ARCTIC CAT (TEXTRON) Thundercat 4x4 SE H2 EFI Automatic 2008 Location #4,5 on the schema
    ARCTIC CAT (TEXTRON) TRV 1000 2009
    ARCTIC CAT (TEXTRON) TRV 1000 Cruiser EFI EPS 4x4 2011
    ARCTIC CAT (TEXTRON) TRV 1000 Cruiser H2 EFI Automatic 4x4 2009–2010
    ARCTIC CAT (TEXTRON) TRV 1000 H2 EFI Automatic 4x4 2010
    ARCTIC CAT (TEXTRON) TRV 1000 LTD EPS 2013–2015
    ARCTIC CAT (TEXTRON) TRV 1000 XT EPS 2015
    ARCTIC CAT (TEXTRON) TRV 1000i Cruiser EPS 2012
    ARCTIC CAT (TEXTRON) TRV 1000i GT EPS 2012
    KUBOTA RTV900 2004, 2007, 2011 Location #6,7 on the schema
    KUBOTA RTV900G6 General Purpose 2005–2006, 2008–2009 Location #6,7 on the schema
    KUBOTA RTV900G6-K 2006 Location #6,7 on the schema
    KUBOTA RTV900G9 General Purpose 2009–2010 Location #6,7 on the schema
    KUBOTA RTV900R-A 2005 Location #6,7 on the schema
    KUBOTA RTV900R6 Recreational 2005–2006, 2008–2010 Location #6,7 on the schema
    KUBOTA RTV900R6-A 2006 Location #6,7 on the schema
    KUBOTA RTV900R9 Recreational 2009–2010 Location #6,7 on the schema
    KUBOTA RTV900R9L Recreational Camo 2010 Location #6,7 on the schema
    KUBOTA RTV900T5 Utility & Turf 2005 Location #6,7 on the schema
    KUBOTA RTV900T5-T2 2005 Location #6,7 on the schema
    KUBOTA RTV900T6 Utility & Turf 2006, 2008–2009 Location #6,7 on the schema
    KUBOTA RTV900T6-T2 2006 Location #6,7 on the schema
    KUBOTA RTV900T9 Utility & Turf 2009–2010 Location #6,7 on the schema
    KUBOTA RTV900W-A 2005 Location #6,7 on the schema
    KUBOTA RTV900W6 Worksite 2005–2006, 2008–2010 Location #6,7 on the schema
    KUBOTA RTV900W6-A 2006 Location #6,7 on the schema
    KUBOTA RTV900W9 Worksite 2009–2010 Location #6,7 on the schema
    KUBOTA RTV900W9L Worksite Camo 2010 Location #6,7 on the schema
    YAMAHA Big Bear 350 2X4 1996–1999 Location #4 on the schema
    YAMAHA Big Bear 350 4x4 1987–1999 Location #4 on the schema
    YAMAHA Big Bear 400 2x4 2000–2001 Location #4 on the schema
    YAMAHA Big Bear 400 4x4 2000–2001 Location #4 on the schema
    YAMAHA Grizzly 600 4x4 1998 Location #4 on the schema
    YAMAHA Kodiak 400 4x4 1993–1998 Location #4 on the schema
    YAMAHA Kodiak 400 4x4 Dual Range 1999 Location #4 on the schema
    YAMAHA Moto-4 YFM350ER 1987–1995 Location #4 on the schema
    YAMAHA Wolverine 350 4x4 1995–2005 Location #4 on the schema
    YAMAHA Wolverine RMAX2 1000 EPS 2021
    YAMAHA Wolverine RMAX2 1000 EPS LE 2021, 2023–2025
    YAMAHA Wolverine RMAX2 1000 EPS Sport 2022–2025
    YAMAHA Wolverine RMAX2 1000 EPS XTR 2023, 2025
    YAMAHA Wolverine RMAX2 1000 R-Spec EPS 2022–2023, 2025
    YAMAHA Wolverine RMAX4 1000 EPS 2021
    YAMAHA Wolverine RMAX4 1000 EPS LE 2021, 2023–2025
    YAMAHA Wolverine RMAX4 1000 EPS XTR 2023, 2025
    YAMAHA Wolverine RMAX4 1000 R-Spec EPS 2022–2024
    YAMAHA Wolverine X2 1000 R-Spec 2024
    YAMAHA Wolverine X2 1000 XTR 2025
    YAMAHA Wolverine X2 850 EPS 2019–2021
    YAMAHA Wolverine X2 850 EPS XTR 2020, 2023, 2025
    YAMAHA Wolverine X2 850 R-Spec EPS 2019–2020, 2022–2024
    YAMAHA Wolverine X2 850 R-Spec EPS Hunter 2019–2022
    YAMAHA Wolverine X2 850 R-Spec EPS SE 2019–2022, 2024
    YAMAHA Wolverine X4 850 EPS 2018–2021
    YAMAHA Wolverine X4 850 EPS Hunter 2018–2020
    YAMAHA Wolverine X4 850 EPS SE 2018–2021
    YAMAHA Wolverine X4 850 EPS XTR 2020, 2023, 2025
    YAMAHA Wolverine X4 850 R-Spec EPS 2022–2024

    Please contact us to confirm part fitment / compatibility.
