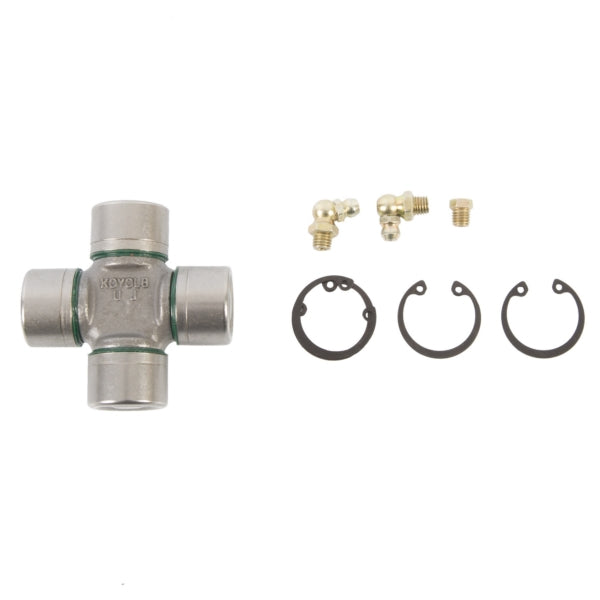

All Balls Universal Joint - 208026
Regular price
$59.99 CAD
Regular price
$0.00 CAD
Sale price
$59.99 CAD
Unit price
per
Low stock: 2 left
Sku:
208026
Couldn't load pickup availability
PS. For a limited time get free shipping in Alberta and BC. Use coupon code FREESHIP26 at checkout!
Description
- U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
- U Joints are pre greased with hi-temp Lithium Complex 3 grease.
- Bearing cups feature a Quad lip seal to keep contamination out and grease in.
- Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
- Kits include cap plug to eliminate grease zerk for low clearance applications.
- Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
- Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
| Tip length | 0.984" |
| Total length | 2.528" |
| Zerk | Yes |
| Snap ring included | Yes |
| Position | Varies by model |
| Model number | 19-1017 |
Compatibility
| Make | Model | Year(s) | Note |
|---|---|---|---|
| CAN-AM (BRP) | Commander 1000 | 2015, 2017 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander 1000 XT-P | 2015–2017 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander 1000R DPS | 2015–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander 1000R LTD | 2015–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander 1000R XT | 2015, 2017–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander 800 XT | 2014 | |
| CAN-AM (BRP) | Commander 800R | 2014, 2017–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander 800R DPS | 2014–2015, 2017–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander 800R XT | 2015, 2017–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander MAX 1000 DPS | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander MAX 1000 LTD | 2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander MAX 1000 XT | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander MAX 1000R DPS | 2017–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander MAX 1000R LTD | 2017–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander MAX 1000R XT | 2017–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Commander MAX 800R DPS | 2017–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 | 2014–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 DPS | 2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Turbo PS | 2016–2017 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 XC | 2017–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 XC DPS | 2016–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Xds DPS | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Xds Turbo DPS | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Xmr | 2014–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Xrs | 2014 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Xrs DPS | 2014 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Xrs Turbo DPS | 2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick 1000 Xxc DPS | 2014–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000 | 2014–2015 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000 Turbo | 2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000 Turbo | 2017 | |
| CAN-AM (BRP) | Maverick MAX 1000 Xds DPS | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000 Xds Turbo DPS | 2015–2017 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000 Xrs DPS | 2014–2015 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000 Xrs Turbo DPS | 2016–2017 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000R Xmr | 2017–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Maverick MAX 1000R Xrs | 2014 | |
| CAN-AM (BRP) | Outlander 1000 EFI 6X6 | 2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000 Xmr | 2015 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000 XT 6X6 PS | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000 XT 6X6 PS Camo | 2017–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000R DPS | 2019 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000R Xmr | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000R Xmr | 2023–2024 | |
| CAN-AM (BRP) | Outlander 1000R XT | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000R XT | 2023–2024 | |
| CAN-AM (BRP) | Outlander 1000R XT-P | 2019–2021 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 1000R XT-P | 2022–2024 | |
| CAN-AM (BRP) | Outlander 1000R Xxc | 2019, 2023–2024 | |
| CAN-AM (BRP) | Outlander 1000R Xxc | 2020–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 450 | 2017–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 450 | 2023 | |
| CAN-AM (BRP) | Outlander 450 DPS | 2017–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 450 DPS | 2023 | |
| CAN-AM (BRP) | Outlander 570 DPS | 2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 570 MR | 2023 | |
| CAN-AM (BRP) | Outlander 570 Xmr DPS | 2017–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 650 | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 650 DPS | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 650 DPS 6X6 | 2017–2018 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 650 Xmr DPS | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 650 XT | 2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 650 XT | 2021 | |
| CAN-AM (BRP) | Outlander 650 XT 6X6 PS | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 800R Xmr | 2015 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 850 | 2024 | |
| CAN-AM (BRP) | Outlander 850 DPS | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 850 DPS | 2023–2024 | |
| CAN-AM (BRP) | Outlander 850 Xmr | 2017–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 850 Xmr | 2023–2024 | |
| CAN-AM (BRP) | Outlander 850 XT | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 850 XT | 2023–2024 | |
| CAN-AM (BRP) | Outlander 850 XT-P | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander 850 XT-P | 2023–2024 | |
| CAN-AM (BRP) | Outlander L 450 | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander L 500 | 2015 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander L 570 | 2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander L 570 LE DPS | 2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander L MAX 450 | 2015–2016 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander L MAX 500 | 2015 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander L MAX 570 | 2016 | |
| CAN-AM (BRP) | Outlander MAX 1000 XT 6X6 | 2023–2025 | |
| CAN-AM (BRP) | Outlander MAX 1000R LTD | 2021–2024 | |
| CAN-AM (BRP) | Outlander MAX 1000R LTD | 2019–2020 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 1000R XT | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 1000R XT | 2023–2024 | |
| CAN-AM (BRP) | Outlander MAX 1000R XT 6X6 | 2019 | |
| CAN-AM (BRP) | Outlander MAX 1000R XT 6X6 | 2020–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 1000R XT-P | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 1000R XT-P | 2023–2024 | |
| CAN-AM (BRP) | Outlander MAX 450 | 2017–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 450 | 2023 | |
| CAN-AM (BRP) | Outlander MAX 450 DPS | 2017–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 450 DPS | 2023 | |
| CAN-AM (BRP) | Outlander MAX 570 | 2017 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 570 DPS | 2016–2017 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 570 XT | 2016–2020 | |
| CAN-AM (BRP) | Outlander MAX 650 6X6 DPS | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 650 6X6 DPS | 2023–2025 | |
| CAN-AM (BRP) | Outlander MAX 650 DPS | 2021–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 650 DPS | 2019–2020 | |
| CAN-AM (BRP) | Outlander MAX 650 XT | 2021–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 650 XT | 2017 | |
| CAN-AM (BRP) | Outlander MAX 850 DPS | 2023–2024 | |
| CAN-AM (BRP) | Outlander MAX 850 North Edition | 2019, 2021 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 850 XT | 2018, 2020, 2023–2024 | |
| CAN-AM (BRP) | Outlander MAX 850 XT | 2019, 2021–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Outlander MAX 850 XT-P | 2018, 2020, 2023–2024 | |
| CAN-AM (BRP) | Outlander MAX 850 XT-P | 2019, 2021–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 1000R | 2018–2019 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 1000R Xmr | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 1000R Xmr | 2023–2025 | |
| CAN-AM (BRP) | Renegade 1000R Xxc | 2023–2025 | |
| CAN-AM (BRP) | Renegade 1000R Xxc | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 570 | 2016–2017, 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 570 Xmr | 2019–2021 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 650 EFI | 2019 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 650 Xmr | 2022–2025 | |
| CAN-AM (BRP) | Renegade 850 | 2019–2022 | Location #4,5 on the schema |
| CAN-AM (BRP) | Renegade 850 Xxc | 2019–2022 | Location #4,5 on the schema |
| POLARIS | RZR Pro R 4 Premium EPS | 2022–2024 | |
| POLARIS | RZR PRO R 4 Sport | 2022 | |
| POLARIS | RZR Pro R 4 Ultimate | 2022–2024 | |
| POLARIS | RZR Pro R Premium EPS | 2022–2024 | |
| POLARIS | RZR Pro R Sport EFI | 2022, 2025 | |
| POLARIS | RZR Pro R Ultimate | 2022–2025 | |
| POLARIS | RZR Pro S 4 Premium EFI | 2025 | |
| POLARIS | RZR Pro S 4 Sport EFI | 2025 | |
| POLARIS | RZR Pro S 4 Ultimate EFI | 2025 | |
| POLARIS | RZR PRO XP 4 Premium EFI | 2022, 2024 | |
| POLARIS | RZR PRO XP 4 Sport EFI | 2022 | |
| POLARIS | RZR PRO XP 4 Ultimate EFI | 2022–2024 | |
| POLARIS | RZR PRO XP Premium EFI | 2022 | |
| POLARIS | RZR PRO XP Sport EFI | 2022 | |
| POLARIS | RZR PRO XP Ultimate EFI | 2022 |
Please contact us to confirm part fitment / compatibility.
