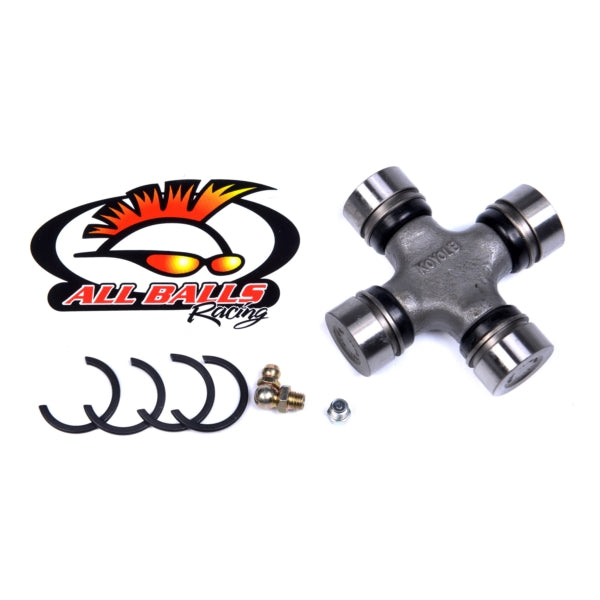

All Balls Universal Joint - 207365

• U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
• U Joints are pre greased with hi-temp Lithium Complex 3 grease.
• Bearing cups feature a Quad lip seal to keep contamination out and grease in.
• Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
• Kits include cap plug to eliminate grease zerk for low clearance applications.
• Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
• Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

Notes for utility Models:

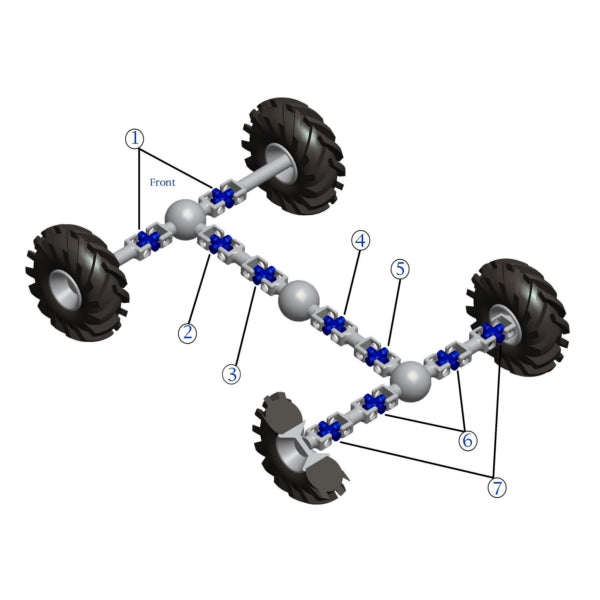

A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)

B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)

C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)

In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

Tip length	1"
Total length	2.38"
Zerk	Yes
Snap ring included	Yes
Position	Varies by model
Model number	19-1011

Compatibility

Make	Model	Year(s)	Note
POLARIS	Diesel 455 4x4	1999	Location #6 on the schema
POLARIS	Sportsman 335 4x4	1999–2000	Location #6 on the schema
POLARIS	Sportsman 500 4x4	1996–1998	Location #6 on the schema
POLARIS	Sportsman 500 6x6	2000
POLARIS	Worker 335	1999	Location #6 on the schema
POLARIS	Xplorer 250 4X4 2 stroke	2000
POLARIS	Xplorer 500 4X4 4 stroke	1997	Location #6 on the schema

Please contact us to confirm part fitment / compatibility.
