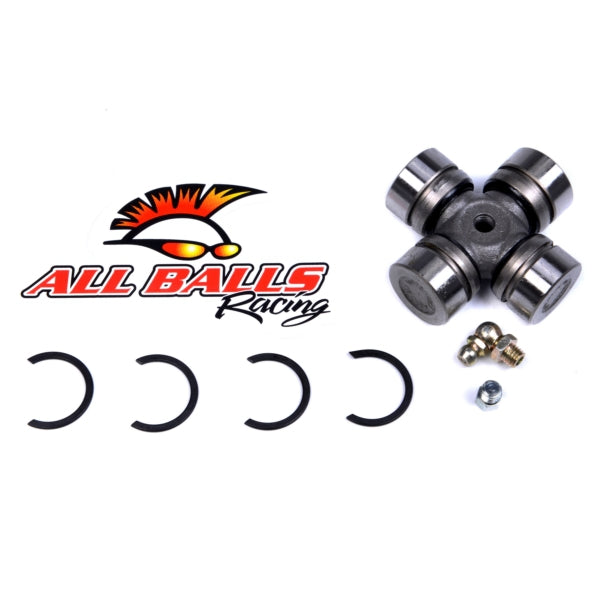

All Balls Universal Joint - 207359

• U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
• U Joints are pre greased with hi-temp Lithium Complex 3 grease.
• Bearing cups feature a Quad lip seal to keep contamination out and grease in.
• Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
• Kits include cap plug to eliminate grease zerk for low clearance applications.
• Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
• Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

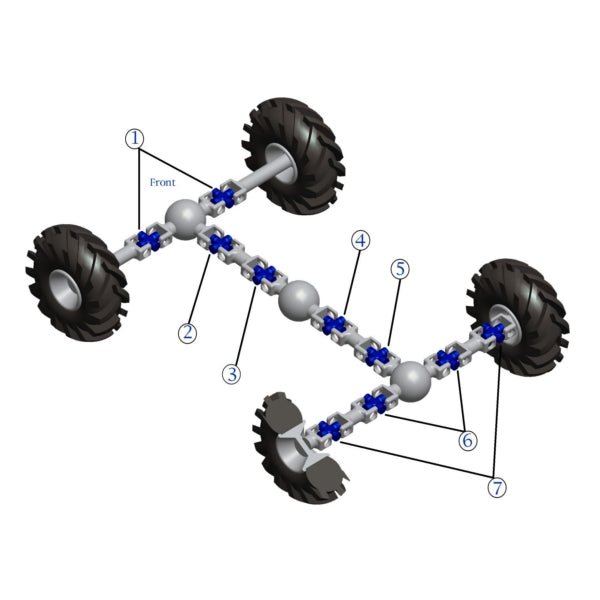

Notes for utility Models:

A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)

B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)

C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)

In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

Tip length	0.945"
Total length	1.624"
Zerk	Yes
Snap ring included	Yes
Position	Varies by model
Model number	19-1004

Compatibility

Make	Model	Year(s)	Note
KAWASAKI	Brute Force 650 4x4	2005–2013	Location #4 on the schema
KAWASAKI	Brute Force 750 4x4i	2005–2021	Location #4,5 on the schema
KAWASAKI	Brute Force 750 EPS 4x4i	2012–2023	Location #4,5 on the schema
KAWASAKI	Brute Force 750 SE EPS 4x4i	2018	Location #4,5 on the schema
KAWASAKI	KSV700/KFX700	2004–2009	Location #4 on the schema
KAWASAKI	KVF750N 4x4 Brute Force EPS	2024–2025
KAWASAKI	Prairie 360 2x4	2003–2009	Location #4 on the schema
KAWASAKI	Prairie 360 4x4	2003–2013	Location #4 on the schema
KAWASAKI	Prairie 650 4x4	2002–2003	Location #4 on the schema
KAWASAKI	Prairie 700 4x4	2004–2006	Location #4 on the schema
KAWASAKI	Prairie 700 SE 4x4	2006
SUZUKI	LT-V700F Twin Peaks 700 4x4	2004–2005	Location #4 on the schema

Please contact us to confirm part fitment / compatibility.
