Vendor: AllBallsRacing

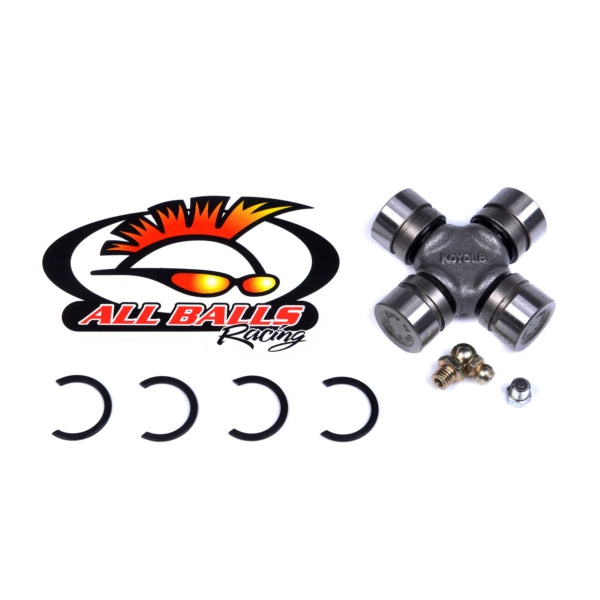

All Balls Universal Joint - 207358

$47.99 CAD
$0.00 CAD $47.99 CAD
Sold out
Low stock: 3 left
Sku: 207358

PS. For a limited time get free shipping in Alberta and BC. Use coupon code FREESHIP26 at checkout!

Description

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

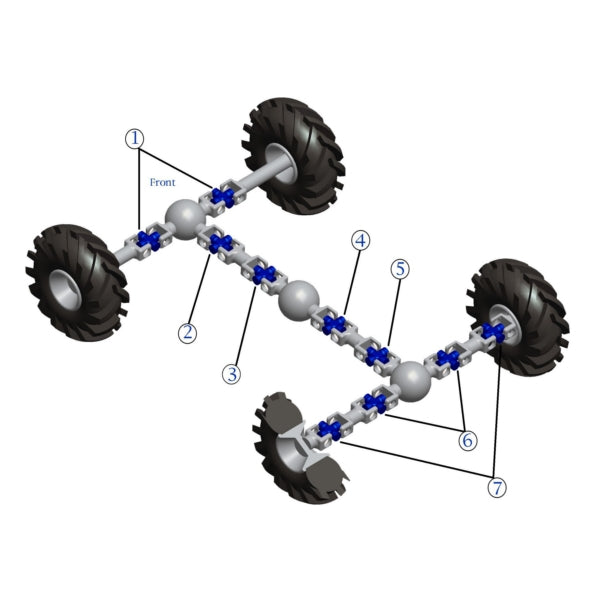

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.
    Tip length 0.787"
    Total length 1.624"
    Zerk Yes
    Snap ring included Yes
    Position Varies by model
    Model number 19-1003

    Compatibility

    Make Model Year(s) Note
    ARCTIC CAT (TEXTRON) 375 4x4 Automatic ACT 2002 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 ACT 2004
    ARCTIC CAT (TEXTRON) 400 4x4 Automatic 2003–2004, 2008 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 automatic FIS 2003–2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 Automatic FIS MRP 2004 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 Automatic MRP 2004
    ARCTIC CAT (TEXTRON) 400 4x4 Automatic MRP ACT 2004
    ARCTIC CAT (TEXTRON) 400 4x4 Automatic VP 2005–2006 Location #3,4 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 LE Automatic 2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 Manual 2003–2004 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 Manual FIS 2003–2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 Manual FIS MRP 2004 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 Manual MRP 2004 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 Manual VP 2005–2006 Location #3,4 on the schema
    ARCTIC CAT (TEXTRON) 400 4x4 MRP 2004
    ARCTIC CAT (TEXTRON) 400 4x4 MRP ACT 2004
    ARCTIC CAT (TEXTRON) 450 4x4 EFI H1 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 450i Core 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 450i GT PS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 2008 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 Automatic 2008–2009 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 Automatic FIS 2004–2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 Automatic FIS LE 2008 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 Automatic MRP 2003 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 Manual 2009 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 Manual FIS 2003–2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 4x4 TRV Automatic 2003 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 Core 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 500 XT 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 4x4 LE H1 EFI Automatic 2009 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 4x4 TRV Automatic 2009 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 4x4 TRV LE H1 EFI Automatic 2009 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 Core 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 H1 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 H1 EFI Automatic 4x4 2009 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 LTD EPS 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550 XT PS 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550i 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550i Core 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550i GT EPS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 550i LTD EPS 2011–2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 EFI Automatic 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 H1 Automatic 2008 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 H1 Automatic FIS 2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 650 4X4 H1 EFI 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 H1 LE Automatic 2005, 2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic 2004–2005
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic FIS 2006
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic LE 2004–2005
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic MRP 2004
    ARCTIC CAT (TEXTRON) 650 4x4 V2 Automatic Tony Stewart 2006
    ARCTIC CAT (TEXTRON) 650 RED 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 4x4 Diesel Automatic 2007–2008 Location #2 on the schema
    ARCTIC CAT (TEXTRON) 700 4X4 Diesel Super Duty 2010–2015 Location #2 on the schema
    ARCTIC CAT (TEXTRON) 700 4x4 EFI Automatic 2008
    ARCTIC CAT (TEXTRON) 700 4x4 EFI Automatic 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 4x4 EFI Automatic FIS 2007
    ARCTIC CAT (TEXTRON) 700 4x4 H1 EFI Automatic 2009–2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 4x4 LE EFI Automatic FIS 2007
    ARCTIC CAT (TEXTRON) 700 4x4 LE H1 EFI Automatic 2009 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 4x4 LTD EFI Automatic EPS 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 4x4 SE H1 EFI Automatic 2008 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 4x4 TRV Cruiser EFI Automatic 2008
    ARCTIC CAT (TEXTRON) 700 Core 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 LTD PS 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700 XT EPS 2014
    ARCTIC CAT (TEXTRON) 700i Core 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700i GT EPS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700i LTD EPS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700i TRV Cruiser PS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 700s 4x4 H1 EFI Automatic 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) 701 XT EPS 2013
    ARCTIC CAT (TEXTRON) Alterra 550 2016 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra 700 2016 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra 700 TBX 2020 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra 700 TRV EPS 2020 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra 700 XT EPS 2016 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra MudPro 700 LTD EPS 2018 Location #4 on the schema
    ARCTIC CAT (TEXTRON) Alterra MudPro 700 LTD EPS 2019 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra TBX 700 EPS 2018–2019 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra TRV 550 XT EPS 2017 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Alterra TRV 700 XT EPS 2019 Location #3 on the schema
    ARCTIC CAT (TEXTRON) MudPro 650 4X4 H1 EFI 2011
    ARCTIC CAT (TEXTRON) MudPro 650 4X4 H1 EFI 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) MudPro 700 4x4 EFI Automatic 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) MudPro 700 4x4 H1 EFI Automatic 2009–2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) MudPro 700 LTD EPS 2013–2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) MudPro 700 LTD EPS 2016–2017 Location #4 on the schema
    ARCTIC CAT (TEXTRON) MudPro 700i 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) MudPro 700i LTD EPS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Prowler 650 H1 XT 2006
    ARCTIC CAT (TEXTRON) TBX 400 4x4 Automatic 2004–2006 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TBX 650 4x4 H1 Automatic 2007 Location #2 on the schema
    ARCTIC CAT (TEXTRON) TBX 650 4x4 H1 Automatic 2009
    ARCTIC CAT (TEXTRON) TBX 700 4X4 H1 EFI Automatic 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TBX 700 4x4 LTD EFI EPS 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TBX 700 EPS 2013–2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TBX 700 EPS 2017
    ARCTIC CAT (TEXTRON) TBX 700 EPS 2016 Location #4 on the schema
    ARCTIC CAT (TEXTRON) TBX 700 EPS SE 2016 Location #4 on the schema
    ARCTIC CAT (TEXTRON) TBX 700i GT EPS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) Thundercat 4x4 SE H2 EFI Automatic 2008
    ARCTIC CAT (TEXTRON) TRV 400 2012–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 400 4x4 Automatic 2006–2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 450 4x4 EFI 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 450i 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 450i GT EPS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 500 2013–2014 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 500 4x4 Automatic 2004, 2006, 2008 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 500 4x4 FIS Automatic 2005 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 550 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 550 LTD EPS 2013–2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 550 XT EPS 2013–2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 550i 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 550i Cruiser PS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 550i GT EPS 2011–2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 550s H1 EFI 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 650 4x4 H1 Automatic 2009 Location #3,4 on the schema
    ARCTIC CAT (TEXTRON) TRV 650 4x4 H1 Automatic 2007–2008 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 650 4x4 H1 LE Automatic 2007 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 700 4x4 Cruiser H1 EFI Automatic 2009–2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 700 4x4 EFI 2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 700 4x4 GT EFI EPS 2010–2011 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 700 4x4 LE EFI Automatic 2008
    ARCTIC CAT (TEXTRON) TRV 700 LTD EPS 2013–2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 700 SE EPS 2016 Location #4 on the schema
    ARCTIC CAT (TEXTRON) TRV 700 XT EPS 2013–2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 700i GT EPS 2012 Location #3 on the schema
    ARCTIC CAT (TEXTRON) TRV 700s 4X4 H1 EFI 2010 Location #3 on the schema
    ARCTIC CAT (TEXTRON) XR 700 2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) XR 700 LTD PS 2015 Location #3 on the schema
    ARCTIC CAT (TEXTRON) XR 700 XT PS 2015 Location #3 on the schema
    SUZUKI LT-A400 Eiger 2x4 Automatic 2002–2004, 2006–2007 Location #4 on the schema
    SUZUKI LT-A400F Eiger 4x4 Automatic 2002–2007
    SUZUKI LT-A400F KingQuad AS 2008–2010
    SUZUKI LT-A400F KingQuad ASi 2011–2025
    SUZUKI LT-A400FZ KingQuad ASi SE 2017–2018
    SUZUKI LT-A400FZ KingQuad ASi SE+ 2020–2024
    SUZUKI LT-A500F QuadMaster 4x4 Automatic 2001
    SUZUKI LT-A500F Vinson 500 4x4 Automatic 2002–2007
    SUZUKI LT-A500F Vinson LTD 2005–2007
    SUZUKI LT-F250 Ozark 2x4 2002–2010, 2012–2014 Location #4 on the schema
    SUZUKI LT-F250F QuadRunner 4x4 1999–2002 Location #4,5 on the schema
    SUZUKI LT-F300F KingQuad 4x4 2001–2002 Location #3 on the schema
    SUZUKI LT-F400 Eiger 2X4 2002–2007 Location #4 on the schema
    SUZUKI LT-F400F Eiger 4X4 2002–2007
    SUZUKI LT-F400F KingQuad FS 2008–2010
    SUZUKI LT-F400F KingQuad FSi 2011–2025
    SUZUKI LT-F500F QuadRunner 4X4 2002
    SUZUKI LT-F500F QuadRunner 4X4 2001 Location #4 on the schema
    SUZUKI LT-F500F Vinson 500 4x4 2003–2007
    SUZUKI LT-F500F Vinson 500 LTD 4x4 2007
    SUZUKI LT-Z250 QuadSport Z 2004–2009 Location #4 on the schema
    YAMAHA Bear Tracker YFM250X 1999–2004 Location #4 on the schema
    YAMAHA Big Bear 250 2007–2009 Location #4 on the schema
    YAMAHA Big Bear 350 4x4 1987–1999
    YAMAHA Big Bear 400 2x4 2002–2004 Location #4 on the schema
    YAMAHA Big Bear 400 4x4 2000–2002, 2006–2011
    YAMAHA Big Bear 400 4x4 IRS 2012
    YAMAHA Big Bear 400 Prof. 2003–2005
    YAMAHA Bruin 250 2005–2006 Location #4 on the schema
    YAMAHA Bruin 350 2x4 2004–2006 Location #4 on the schema
    YAMAHA Bruin 350 4x4 2004–2006 Location #4 on the schema
    YAMAHA Grizzly 350 4x4 2007–2013 Location #4 on the schema
    YAMAHA Grizzly 350 4x4 IRS 2007–2011
    YAMAHA Grizzly 350 Auto 2007–2009, 2011, 2014 Location #4 on the schema
    YAMAHA Grizzly 400 4x4 2007–2008 Location #4,5 on the schema
    YAMAHA Grizzly 450 4x4 Auto 2007–2008, 2011–2014
    YAMAHA Grizzly 450 4x4 EPS 2011–2014
    YAMAHA Grizzly 450 4x4 IRS 2009–2010
    YAMAHA Grizzly 550 4x4 FI 2014 Location #4 on the schema
    YAMAHA Grizzly 600 4x4 1998–2001
    YAMAHA Grizzly 600 4x4 Hunter 2001
    YAMAHA Grizzly 660 4x4 2002
    YAMAHA Grizzly 660 4x4 Hunter 2002
    YAMAHA Kodiak 400 2x4 2003–2004 Location #4 on the schema
    YAMAHA Kodiak 400 2x4 2001
    YAMAHA Kodiak 400 2x4 Ultra 2000 Location #4 on the schema
    YAMAHA Kodiak 400 4x4 1993–1998
    YAMAHA Kodiak 400 4x4 2001–2004 Location #4 on the schema
    YAMAHA Kodiak 400 4x4 Dual Range 1999
    YAMAHA Kodiak 400 4x4 Dual Range 2000 Location #4 on the schema
    YAMAHA Kodiak 400 4x4 Hunter 2006 Location #4,5 on the schema
    YAMAHA Kodiak 400 4x4 Ultra 2001, 2003 Location #4 on the schema
    YAMAHA Kodiak 400 4x4 Ultra 2005 Location #4,5 on the schema
    YAMAHA Kodiak 450 4x4 2003–2006
    YAMAHA Kodiak 450 4x4 Hunter 2005
    YAMAHA Moto-4 YFM225 1986–1988 Location #4 on the schema
    YAMAHA Moto-4 YFM250 1989–1991 Location #4 on the schema
    YAMAHA Rhino 450 4x4 2006–2009
    YAMAHA Rhino 450 4x4 Hunter 2006
    YAMAHA Rhino 450 4x4 SE 2007–2008
    YAMAHA Rhino 660 4x4 2004–2007
    YAMAHA Rhino 660 4x4 Exploring 2006–2007
    YAMAHA Rhino 660 4x4 Hunter 2004–2005, 2007
    YAMAHA Rhino 660 4x4 SE 2006–2007
    YAMAHA Rhino 660 4x4 Sport 2007
    YAMAHA Rhino 700 4x4 FI 2008–2009, 2011–2013
    YAMAHA Rhino 700 4x4 FI Ducks Unlimited YXR700F 2008–2009
    YAMAHA Rhino 700 SE FI 2008–2009, 2013
    YAMAHA Rhino 700 Sport Deluxe FI 2011–2012
    YAMAHA Rhino 700 Sport FI 2008–2009
    YAMAHA Timberwolf 2x4 1992–1998 Location #4 on the schema
    YAMAHA Timberwolf 4X4 1994–2000
    YAMAHA Tri-Moto YTM225 1985–1986 Location #4 on the schema
    YAMAHA Viking 700 2014–2017
    YAMAHA Viking 700 EPS 2014, 2016–2025
    YAMAHA Viking 700 EPS Hunter 2017, 2019–2020
    YAMAHA Viking 700 EPS Ranch 2019–2021, 2023, 2025
    YAMAHA Viking 700 EPS SE 2015
    YAMAHA Viking VI 700 2018–2020
    YAMAHA Viking VI 700 EPS 2015–2025
    YAMAHA Viking VI 700 EPS Hunter 2015–2022
    YAMAHA Viking VI 700 EPS Ranch 2017–2023, 2025
    YAMAHA Wolverine 350 4x4 1995–2005
    YAMAHA Wolverine 350 4x4 2006–2009 Location #4 on the schema
    YAMAHA Wolverine 450 4x4 2006–2010 Location #4 on the schema
    YAMAHA Wolverine 700 2016–2018
    YAMAHA Wolverine 700 EPS 2017
    YAMAHA Wolverine 700 R-Spec EPS 2016–2018
    YAMAHA Wolverine 700 R-Spec EPS Hunter 2018
    YAMAHA Wolverine 700 R-Spec EPS SE 2016–2018
    YAMAHA Wolverine 700 R-Spec FOX EPS 2016
    YAMAHA YXZ1000R EPS 2016–2025
    YAMAHA YXZ1000R EPS SE 2016–2020
    YAMAHA YXZ1000R EPS SS 2017–2025
    YAMAHA YXZ1000R EPS SS SE 2017–2021
    YAMAHA YXZ1000R EPS SS XTR 2020–2023, 2025

    Please contact us to confirm part fitment / compatibility.

    View full details
    All Balls Universal Joint - 207358
    All Balls Universal Joint - 207358

    $47.99

    Recommended products
    Product Product subtotal Quantity Price Product subtotal
    All Balls Universal Joint - 207358
    All Balls Universal Joint - 207358207358
    All Balls Universal Joint - 207358207358
    $0.00
    $47.99/ea
    		 $0.00
    $0.00
    $47.99/ea
    		 $0.00
